網站首頁-產品中心-小型精密數控排刀車床Small gang tool lathe-小型精密數控排刀車床 small gang tool lathe

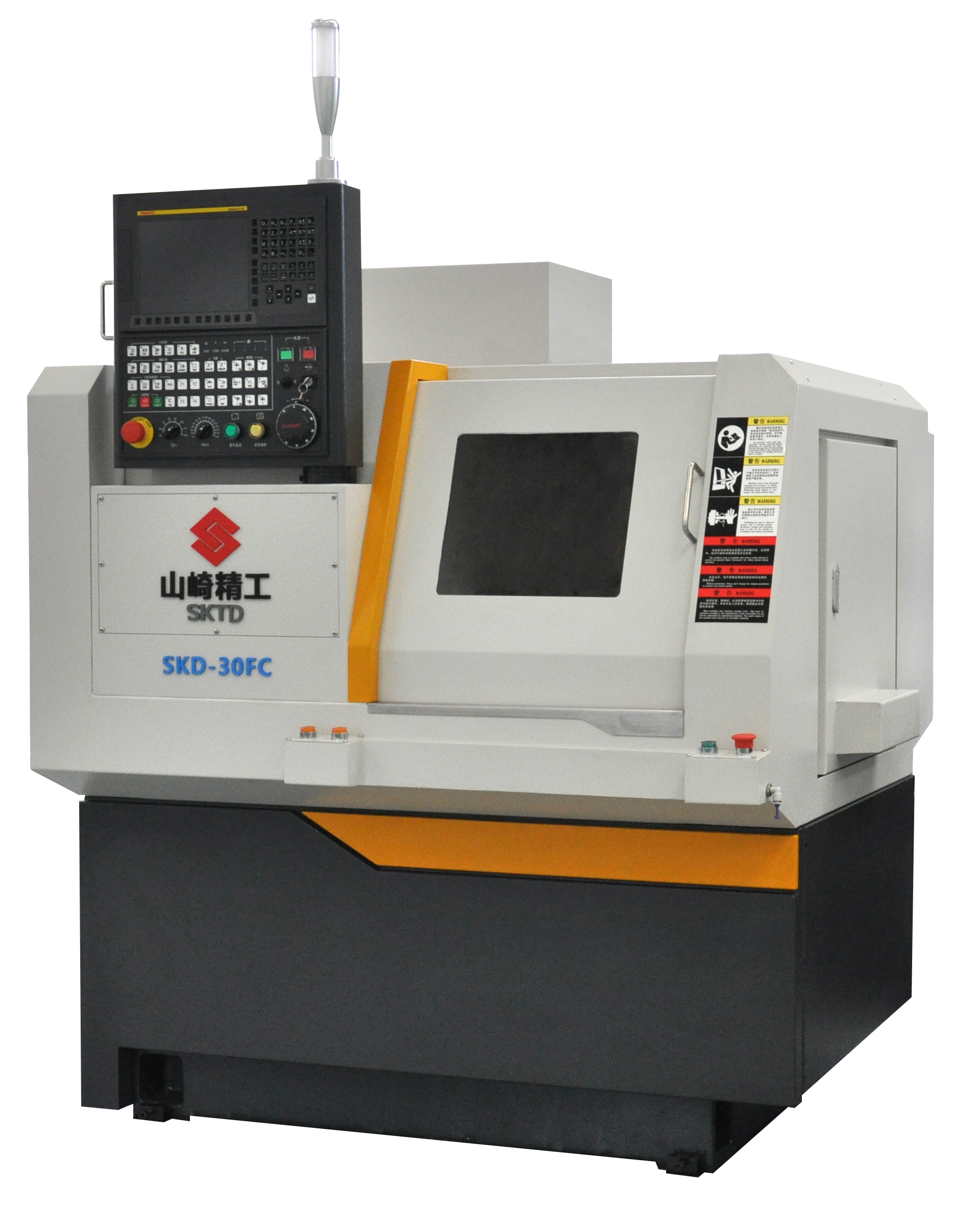

小型精密數控排刀車床 small gang tool lathe
小型精密數控排刀車床 small gang tool lathe
小型精密數控排刀車床 small gang tool lathe

小型精密數控排刀車床 small gang tool lathe

型號:SKD-20/30F, SKD-20/30FC

產品時間:2025-07-14

簡要描述:高精度高剛性主軸,整體鑄鐵床身,高精度直線導軌,排刀式刀架使重復換到誤差位最小,換刀高速準確。滿足中小直徑高精度、高效率的自動化加工需求。High precision and High rigidity spindle. Integral cast iron bed frame. High precision linear guideways. The row knife type tool rest minimizes the error of repeated tool changing, ensuring high-speed and accurate tool changing.

詳細介紹

高精度高剛性主軸,整體鑄鐵床身,高精度直線導軌,排刀式刀架使重復換到誤差位最小,換刀高速準確。SKD-20/30FC滿足中小直徑高精度、高效率的自動化加工需求, 配置C軸輪廓控制,再配置動力刀具(鉆孔、銑槽、剛性攻絲),實現豐富的柔性組合加工。

High precision and High rigidity spindle.

Integral cast iron bed frame.

High precision linear guideways.

The row knife type tool rest minimizes the error of  repeated tool changing, ensuring high-speed and accurate tool changing.

SKD-20/30FC meets the high precision and high efficiency automated machining of  small and medium diameter workpieces. It makes the rich flexible combination machining to be reality by equiping with C- axis profile control and power tools(drilling, milling, rigid tapping).



性能參數







SKD-20/30F,SKD-20/30FC

Capacity

Max.swing dia.over bed



Φ240mm



Max.swing dia.over tool holder



Φ120mm



Max. machining diameter



Φ100mm



Max.machining length



100mm

Spindle

Spindle speed



Max. 6000r/min



Spindle hole



20F/FC   Φ20mm







30F/FC   Φ30mm



Center height of spindle



997mm



Transformation of spindle speed



Stepless



Spring collet shank



20F/FC:   Φ26mm







30F/FC:   Φ36mm

Travel



Travel of X axis



280mm



Travel of Z axis



180mm

Rapid travel

Rapid move of X axis



20000mm/min



Rapid move of Z axis



20000mm/min

Motor

Spindle motor



   20/30F:   3.7kw







20/30FC:  3.7/5.5kw



Feeding motor



0.75/1 kw



Power supply



6 kVA



Other

Machine weight



1200kg



Outline dimensionlength×width×height



1446×1169×1531
